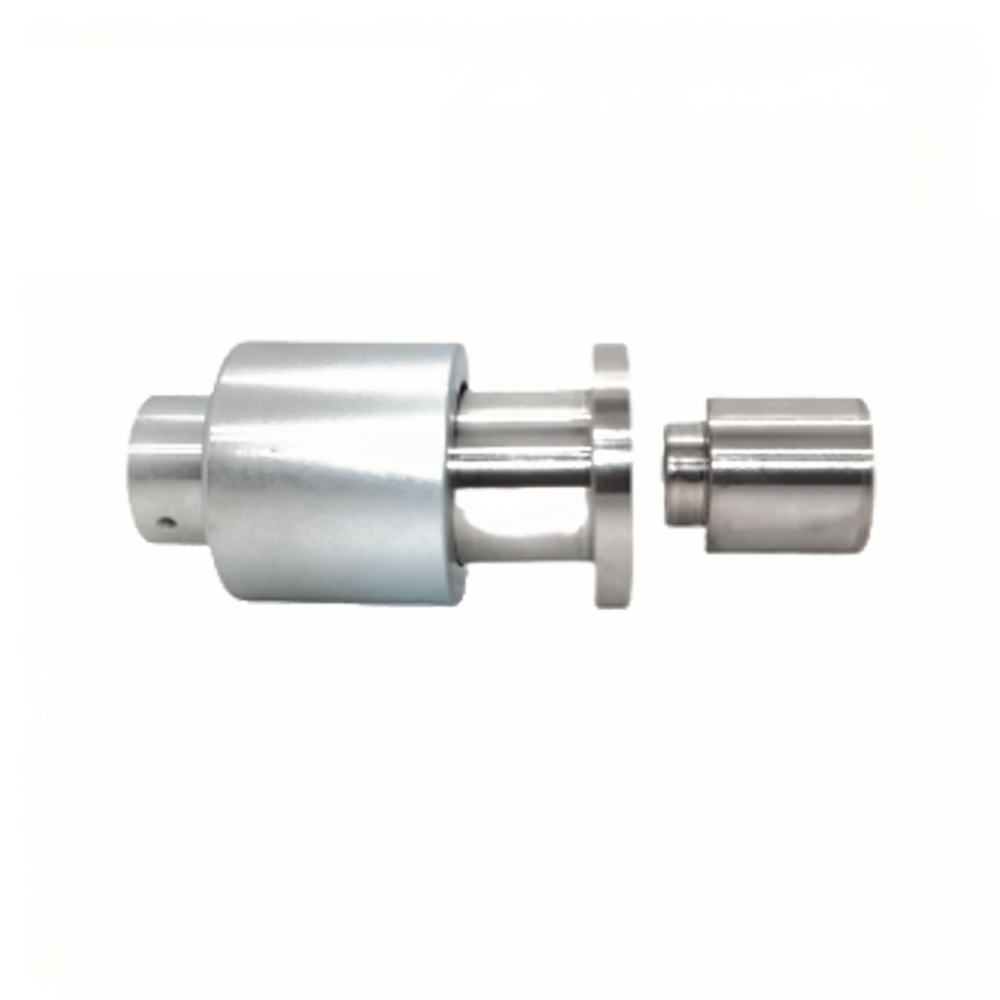

Custom Magnetic Couplings for Motor Pump

Product ID NMC001
Material NdFeB
Shape Customized
Grade N35-N52
Length Customized
Width Customized
Coating NI,ZN
Tolerance ±0.05mm x ±0.05mm ±0.05mm×±0.05mm
Weight(g) Customized
Max Operating Temp (°C ) 80-200
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Description of Custom Magnetic Couplings for Motor Pump

A magnetic coupling is a contactless coupling that uses magnetism to transmit torque and provide isolation between the motor and the driven equipment. The magnetic coupling consists of an outer rotor, an inner rotor and an isolation end cover. The outer rotor is connected to the driving motor, and the inner rotor is connected to driven equipment such as pumps and mixers. When the motor rotates, the magnetic field generated by the permanent magnets on the outer rotor transfers torque to the inner rotor, thereby driving the loading equipment to rotate. The key advantage is that it is leakproof and suitable for transporting flammable and toxic fluids. Widely used in chemical, pharmaceutical, food and other industries.

GradeN35-N52
DimensionCustomized
CoatingNI,ZN
Tolerance±0.05mm x ±0.05mm ±0.05mm×±0.05mm
WeightCustomized
Temperature max80-200℃
PackageVacuum bag + Box + Foam + Carton
ShippingCourier or Sea or Air
