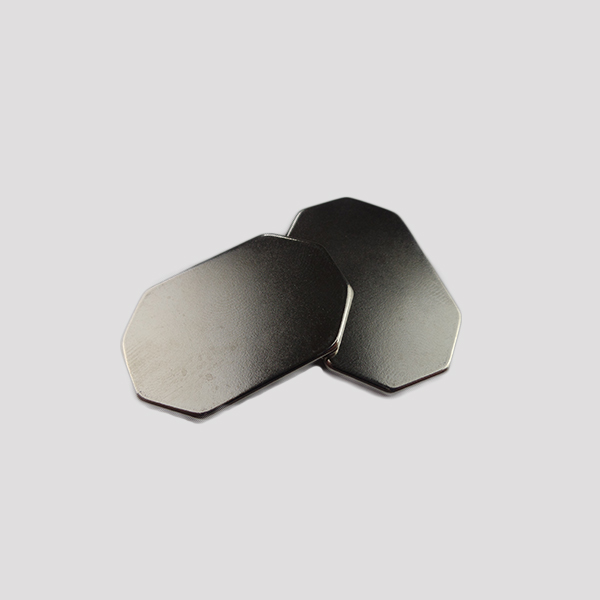

Description of Neodymium Irregular Magnet L35xW23.5xH2mm
Grade | N45 |
Dimension | L35xW23.5xH2mm |
Coating | Ni-Cu-Ni |
Magnetzied direction | Through thickness |
Tolerance | ±0.05mm |
Temperature max | 80°c |
Package | Vacuum bag + Box + Foam + Carton |
Shipping | Courier or Sea or Air |
High strength Irregular L35xW23.5xH2mm custom made, nickel coating. The shape is looks like a circle, some of our customer use it for the electrical application. The most difficult to produce this magnet is the machining process, the radius is not so easy to produce. And also, while we are doing the coating process, we have to maintain the every single part of the magnet to be shinny and spark.
XF Magnet with 14 years experiences specialized in researching, manufacturing and application of sintered NdFeB permanent Irregular magnet.
XF Magnet works with more than 52 countries’customers to optimize their design and produce Irregular magnet to meet required specification. XF Magnet has own quality management system to make sure our Irregular magnet is satisfied with our clients. If we can be assistance of, click here for the contact information.
Or, if you need more details about Irregular magnet from XF magnet, contact us, or use our online custom magnet quote form.
For a table of neodymium magnet preformance, just clink the column of technology data, you will fine the best answer as you want. Meanwhile we will send our manual of magnet safety while shippment. Last but not the least, Irregular magnets must be respected but need not be feared.
Application
Comparison of Products
Comparison of Packaging
MAGNETIC PROPERTIES
Grade | Residual Induction Br | Coercive Force HcB | Intrinsic Coercive Hcj | Energy Product(BH)max | Max Working Temp. | ||||||||
Kgs | T | KOe | KA/m | Koe | KA/m | MGOe | KJ/m | L/D≥0.7 | |||||
Max | Min | Max | Min | Min | Min | Min | Min | Max | Min | Max | Min | ℃ | |
N35 | 12.30 | 11.80 | 1.23 | 1.18 | ≥10.9 | ≥868 | ≥12 | ≥955 | 36 | 33 | 287 | 263 | ≤80 |
N38 | 12.60 | 12.30 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥12 | ≥955 | 39 | 36 | 311 | 287 | ≤80 |
N40 | 12.90 | 12.60 | 1.29 | 1.26 | ≥11.4 | ≥907 | ≥12 | ≥955 | 41 | 38 | 327 | 302 | ≤80 |
N42 | 13.30 | 12.90 | 1.33 | 1.29 | ≥11.5 | ≥915 | ≥12 | ≥955 | 43 | 40 | 342 | 318 | ≤80 |
N45 | 13.70 | 13.30 | 1.37 | 1.33 | ≥11.0 | ≥876 | ≥12 | ≥955 | 46 | 43 | 366 | 342 | ≤80 |
N48 | 14.10 | 13.70 | 1.41 | 1.37 | ≥10.5 | ≥836 | ≥11 | ≥876 | 49 | 45 | 390 | 358 | ≤80 |
N50 | 14.50 | 14.00 | 1.45 | 1.40 | ≥10.5 | ≥836 | ≥11 | ≥876 | 51 | 47 | 406 | 374 | ≤60 |
N52 | 14.80 | 14.30 | 1.48 | 1.43 | ≥10.5 | ≥836 | ≥11 | ≥876 | 53 | 49 | 422 | 390 | ≤60 |
35M | 12.30 | 11.80 | 1.23 | 1.18 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 36 | 34 | 287 | 271 | ≤100 |
38M | 12.60 | 12.30 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥14 | ≥1114 | 39 | 36 | 311 | 287 | ≤100 |
40M | 12.90 | 12.60 | 1.29 | 1.26 | ≥11.6 | ≥923 | ≥14 | ≥1114 | 41 | 38 | 327 | 302 | ≤100 |
42M | 13.30 | 12.90 | 1.33 | 1.29 | ≥12.0 | ≥955 | ≥14 | ≥1114 | 43 | 40 | 342 | 318 | ≤100 |
45M | 13.70 | 13.30 | 1.37 | 1.33 | ≥12.5 | ≥995 | ≥14 | ≥1114 | 46 | 43 | 366 | 342 | ≤100 |
48M | 14.10 | 13.70 | 1.41 | 1.37 | ≥12.9 | ≥1027 | ≥14 | ≥1114 | 49 | 45 | 390 | 358 | ≤100 |
50M | 14.50 | 14.00 | 1.45 | 1.40 | ≥13.0 | ≥1033 | ≥14 | ≥1114 | 51 | 47 | 406 | 374 | ≤100 |
35H | 12.30 | 11.80 | 1.23 | 1.18 | ≥10.9 | ≥868 | ≥17 | ≥1353 | 36 | 33 | 287 | 263 | ≤120 |
38H | 12.60 | 12.30 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥17 | ≥1353 | 39 | 36 | 311 | 287 | ≤120 |
40H | 12.90 | 12.60 | 1.29 | 1.26 | ≥11.6 | ≥923 | ≥17 | ≥1353 | 41 | 38 | 327 | 302 | ≤120 |
42H | 13.30 | 12.90 | 1.33 | 1.29 | ≥12.0 | ≥955 | ≥17 | ≥1353 | 43 | 40 | 342 | 318 | ≤120 |
45H | 13.70 | 13.30 | 1.37 | 1.33 | ≥12.3 | ≥979 | ≥17 | ≥1353 | 46 | 43 | 366 | 342 | ≤120 |
48H | 14.10 | 13.70 | 1.41 | 1.37 | ≥12.5 | ≥995 | ≥17 | ≥1353 | 49 | 46 | 390 | 366 | ≤120 |
35SH | 12.30 | 11.80 | 1.23 | 1.18 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 36 | 33 | 287 | 263 | ≤150 |
38SH | 12.60 | 12.30 | 1.26 | 1.23 | ≥11.4 | ≥907 | ≥20 | ≥1592 | 39 | 36 | 311 | 287 | ≤150 |
40SH | 12.90 | 12.60 | 1.29 | 1.26 | ≥11.6 | ≥939 | ≥20 | ≥1592 | 41 | 38 | 326 | 302 | ≤150 |
42SH | 13.30 | 12.90 | 1.33 | 1.29 | ≥12.4 | ≥987 | ≥20 | ≥1592 | 43 | 40 | 342 | 318 | ≤150 |
45SH | 13.70 | 13.20 | 1.37 | 1.32 | ≥12.6 | ≥1003 | ≥20 | ≥1592 | 46 | 42 | 366 | 334 | ≤150 |
33UH | 11.80 | 11.40 | 1.18 | 1.14 | ≥10.7 | ≥852 | ≥25 | ≥1989 | 34 | 31 | 271 | 247 | ≤180 |
35UH | 12.30 | 11.80 | 1.23 | 1.18 | ≥10.8 | ≥860 | ≥25 | ≥1989 | 36 | 33 | 287 | 263 | ≤180 |
38UH | 12.60 | 12.30 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥25 | ≥1989 | 39 | 36 | 311 | 287 | ≤180 |
40UH | 12.90 | 12.50 | 1.29 | 1.25 | ≥11.3 | ≥899 | ≥25 | ≥1989 | 41 | 38 | 326 | 302 | ≤180 |
33EH | 11.80 | 11.40 | 1.18 | 1.14 | ≥10.3 | ≥820 | ≥30 | ≥2388 | 34 | 31 | 271 | 247 | ≤200 |
35EH | 12.30 | 11.70 | 1.23 | 1.17 | ≥10.5 | ≥836 | ≥30 | ≥2388 | 36 | 33 | 287 | 263 | ≤200 |
38EH | 12.60 | 12.20 | 1.26 | 1.22 | ≥11.3 | ≥899 | ≥30 | ≥2388 | 39 | 35 | 311 | 287 | ≤200 |
