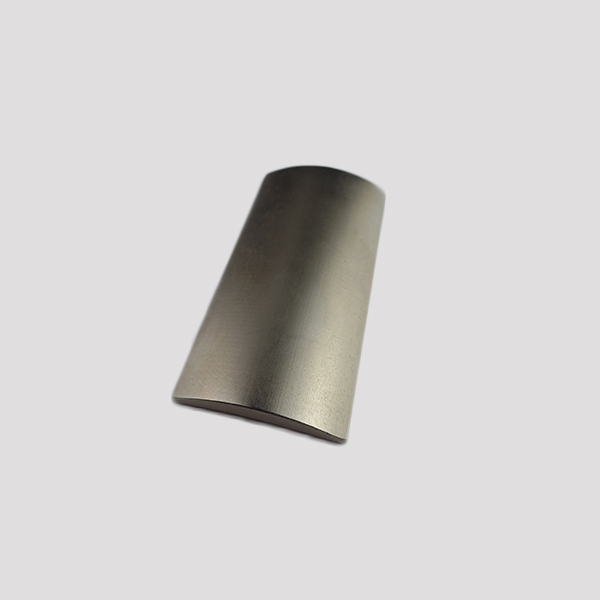

N38SH Zinc Plated Arc Magnets For Motors

Product ID	NMA31555
Material	NdFeB
Shape	Arc
Grade	N38SH
Outer Radius	31.5mm
Inner Radius	12.45mm
Length	20.7mm
Coating	Nickel-Copper-Nickel
Magnetization Direction	Through thickness
Tolerance	±0.05mm x ±0.05mm x ±0.05mm
Weight(g)	115.6
Max Operating Temp (°C / °F)	150 / 302

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL
MAGNETIC PROPERTIES
video
certification

Description of R31.5xr12.45×20.7x55mm BLDC Motor Neodymium Magnet N38SH Zinc

Grade	N38SH
Dimension	R31.5xr12.45×20.7x55mm
Coating	Zinc Plated
Magnetzied direction	Through thickness
Tolerance	±0.05mm
Weight	115.6g/pc
Temperature max	150°c
Package	Vacuum bag + Box + Foam + Carton
Shipping	Courier or Sea or Air

Neodymium magnet segment size R30x50x9x3mm applied in BLDC motor series. This magnet is in the grade of N38SH with high Hcb parameter ≥11.4 KOe, plated with Zinc coating in order to get better cohesive force between the magnet and the rotor when in assembly and final function. Some of our clients required for Nickel coating in order to get a better oxidation resistance purpose.

Application
Magnet Application

Comparison of Products
Comparison of magnet

Comparison of Packaging
Comparison of magnet packaging

MAGNETIC PROPERTIES

Grade	Residual Induction Br				Coercive Force HcB		Intrinsic Coercive Hcj		Energy Product(BH)max				Max Working Temp.
	Kgs		T		KOe	KA/m	Koe	KA/m	MGOe		KJ/m		L/D≥0.7
	Max	Min	Max	Min	Min	Min	Min	Min	Max	Min	Max	Min	℃
N35	12.30	11.80	1.23	1.18	≥10.9	≥868	≥12	≥955	36	33	287	263	≤80
N38	12.60	12.30	1.26	1.23	≥11.3	≥899	≥12	≥955	39	36	311	287	≤80
N40	12.90	12.60	1.29	1.26	≥11.4	≥907	≥12	≥955	41	38	327	302	≤80
N42	13.30	12.90	1.33	1.29	≥11.5	≥915	≥12	≥955	43	40	342	318	≤80
N45	13.70	13.30	1.37	1.33	≥11.0	≥876	≥12	≥955	46	43	366	342	≤80
N48	14.10	13.70	1.41	1.37	≥10.5	≥836	≥11	≥876	49	45	390	358	≤80
N50	14.50	14.00	1.45	1.40	≥10.5	≥836	≥11	≥876	51	47	406	374	≤60
N52	14.80	14.30	1.48	1.43	≥10.5	≥836	≥11	≥876	53	49	422	390	≤60
35M	12.30	11.80	1.23	1.18	≥10.9	≥868	≥14	≥1114	36	34	287	271	≤100
38M	12.60	12.30	1.26	1.23	≥11.3	≥899	≥14	≥1114	39	36	311	287	≤100
40M	12.90	12.60	1.29	1.26	≥11.6	≥923	≥14	≥1114	41	38	327	302	≤100
42M	13.30	12.90	1.33	1.29	≥12.0	≥955	≥14	≥1114	43	40	342	318	≤100
45M	13.70	13.30	1.37	1.33	≥12.5	≥995	≥14	≥1114	46	43	366	342	≤100
48M	14.10	13.70	1.41	1.37	≥12.9	≥1027	≥14	≥1114	49	45	390	358	≤100
50M	14.50	14.00	1.45	1.40	≥13.0	≥1033	≥14	≥1114	51	47	406	374	≤100
35H	12.30	11.80	1.23	1.18	≥10.9	≥868	≥17	≥1353	36	33	287	263	≤120
38H	12.60	12.30	1.26	1.23	≥11.3	≥899	≥17	≥1353	39	36	311	287	≤120
40H	12.90	12.60	1.29	1.26	≥11.6	≥923	≥17	≥1353	41	38	327	302	≤120
42H	13.30	12.90	1.33	1.29	≥12.0	≥955	≥17	≥1353	43	40	342	318	≤120
45H	13.70	13.30	1.37	1.33	≥12.3	≥979	≥17	≥1353	46	43	366	342	≤120
48H	14.10	13.70	1.41	1.37	≥12.5	≥995	≥17	≥1353	49	46	390	366	≤120
35SH	12.30	11.80	1.23	1.18	≥11.0	≥876	≥20	≥1592	36	33	287	263	≤150
38SH	12.60	12.30	1.26	1.23	≥11.4	≥907	≥20	≥1592	39	36	311	287	≤150
40SH	12.90	12.60	1.29	1.26	≥11.6	≥939	≥20	≥1592	41	38	326	302	≤150
42SH	13.30	12.90	1.33	1.29	≥12.4	≥987	≥20	≥1592	43	40	342	318	≤150
45SH	13.70	13.20	1.37	1.32	≥12.6	≥1003	≥20	≥1592	46	42	366	334	≤150
33UH	11.80	11.40	1.18	1.14	≥10.7	≥852	≥25	≥1989	34	31	271	247	≤180
35UH	12.30	11.80	1.23	1.18	≥10.8	≥860	≥25	≥1989	36	33	287	263	≤180
38UH	12.60	12.30	1.26	1.23	≥11.3	≥899	≥25	≥1989	39	36	311	287	≤180
40UH	12.90	12.50	1.29	1.25	≥11.3	≥899	≥25	≥1989	41	38	326	302	≤180
33EH	11.80	11.40	1.18	1.14	≥10.3	≥820	≥30	≥2388	34	31	271	247	≤200
35EH	12.30	11.70	1.23	1.17	≥10.5	≥836	≥30	≥2388	36	33	287	263	≤200
38EH	12.60	12.20	1.26	1.22	≥11.3	≥899	≥30	≥2388	39	35	311	287	≤200
