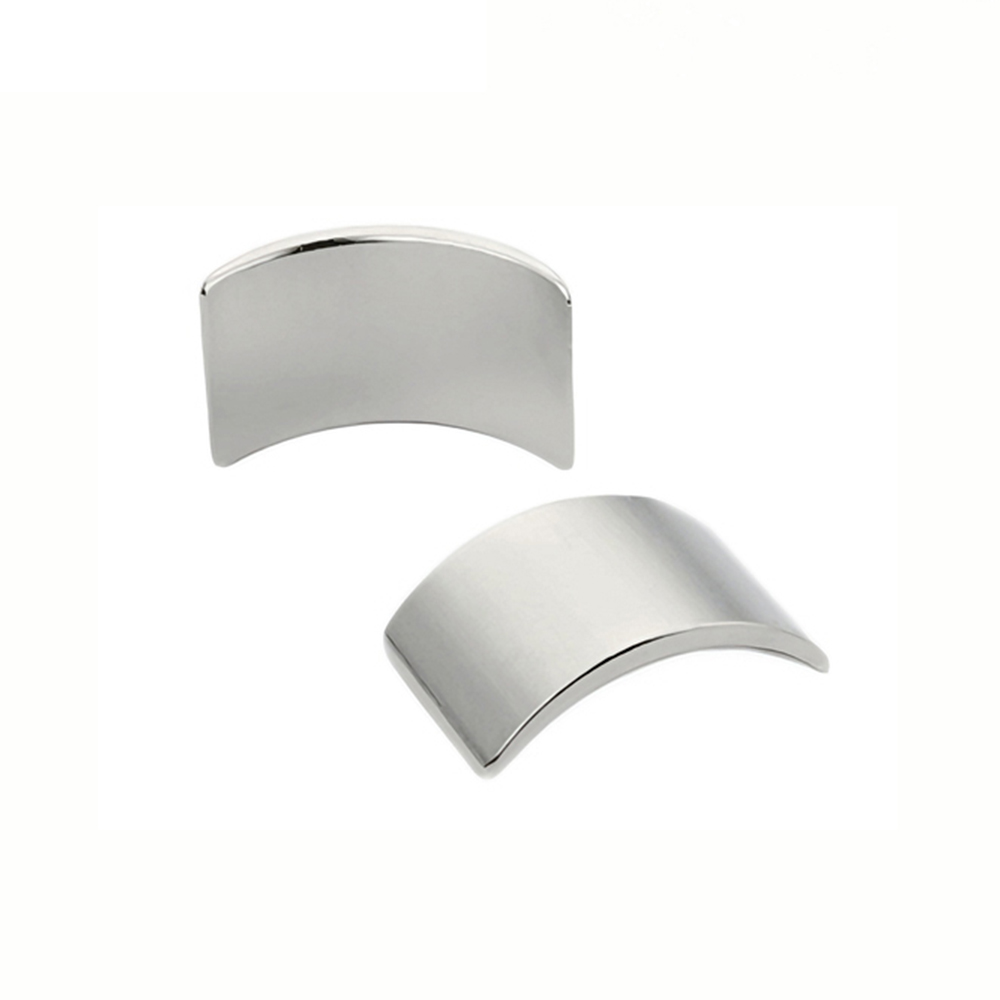

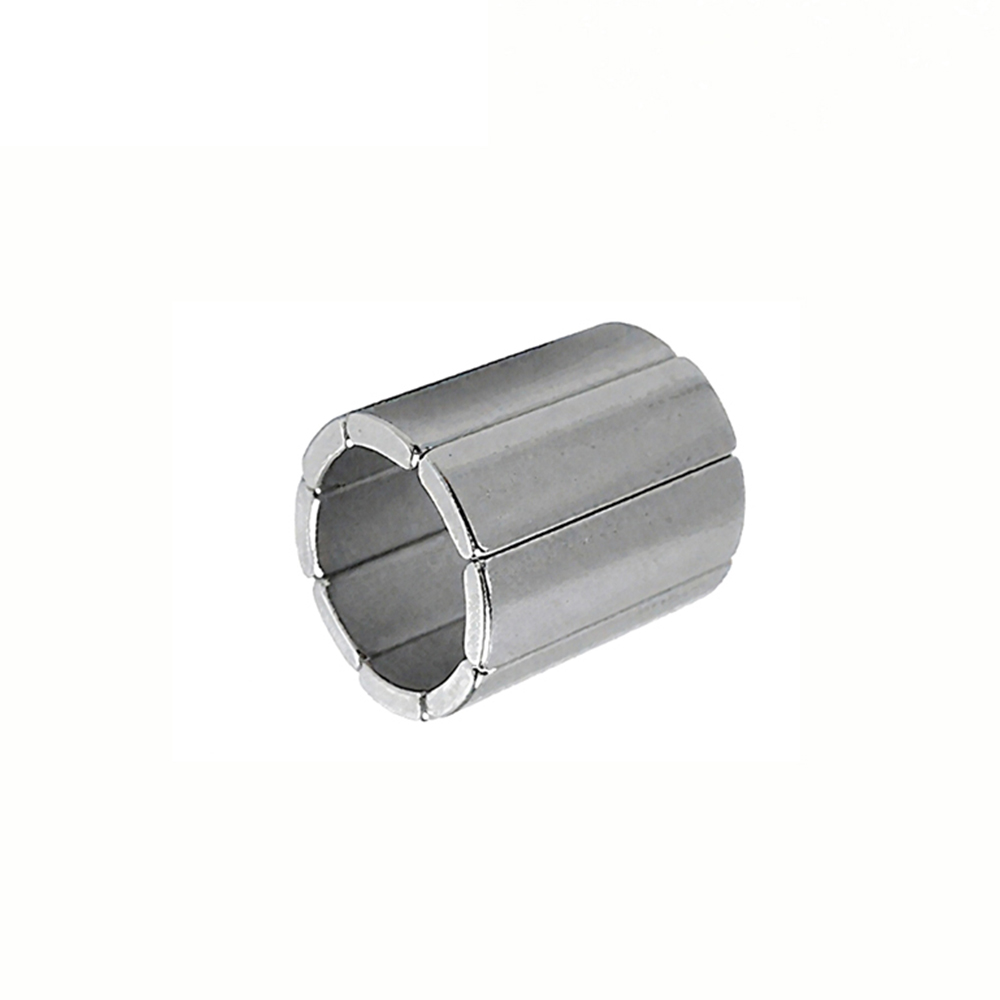

N42SH Nickel Coating Neodymium Arc Magnets

Product ID NMA21520
Material NdFeB
Shape Arc
Grade N42SH
Outer Radius 21.5mm
Inner Radius 60°
Length 20mm
Coating Nickel-Copper-Nickel
Magnetization Direction Through thickness
Tolerance ±0.05mm x ±0.05mm x ±0.05mm
Weight(g) 15
Max Operating Temp (°C / °F) 150 / 302
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • MAGNETIC PROPERTIES
  • video
  • certification

Description of Neodymium Arc Magnets N42SH R21.5*60°*L20mm Nickel Coating

Grade N42SH
Dimension R21.5*60°*L20mm
Coating Nickel Coating
Magnetzied direction Through thickness
Tolerance ±0.05mm
Weight 15g/pc
Temperature max 150°c
Package Vacuum bag + Box + Foam + Carton
Shipping Courier or Sea or Air

Permanent neodymium magnets also knowas rare earth neodymium magnets, are made from rare material alloy of neodymium, iron, ferrite etc. because ofit’s magnetic performance, they are widely used in different applications. This magnet is under grade N42SH, this SH material can be working constantly with temperature higher than 100°. N42SH grade with Br range from 12.9KGs to 13.3KGs, (BH)Max range from 318KJ/m3 to 342KJ/m3. Most our magnets are customized size, it depends on the end application of thismagnets. Our leading time for such magnets normally 22 to 25 days. It takeslonger time for the pre-production period. As higher grade magnets included Dycontent which the material formula is complicated. Please feel free to contactus for your better choice of motor magnets.

Application
Magnet Application

Comparison of Products
Comparison of magnet

Comparison of Packaging
Comparison of magnet packaging

MAGNETIC PROPERTIES

Grade Residual Induction Br Coercive Force HcB Intrinsic Coercive Hcj Energy Product(BH)max Max Working Temp.
Kgs T KOe KA/m Koe KA/m MGOe KJ/m L/D≥0.7
Max Min Max Min Min Min Min Min Max Min Max Min
N35 12.30 11.80 1.23 1.18 ≥10.9 ≥868 ≥12 ≥955 36 33 287 263 ≤80
N38 12.60 12.30 1.26 1.23 ≥11.3 ≥899 ≥12 ≥955 39 36 311 287 ≤80
N40 12.90 12.60 1.29 1.26 ≥11.4 ≥907 ≥12 ≥955 41 38 327 302 ≤80
N42 13.30 12.90 1.33 1.29 ≥11.5 ≥915 ≥12 ≥955 43 40 342 318 ≤80
N45 13.70 13.30 1.37 1.33 ≥11.0 ≥876 ≥12 ≥955 46 43 366 342 ≤80
N48 14.10 13.70 1.41 1.37 ≥10.5 ≥836 ≥11 ≥876 49 45 390 358 ≤80
N50 14.50 14.00 1.45 1.40 ≥10.5 ≥836 ≥11 ≥876 51 47 406 374 ≤60
N52 14.80 14.30 1.48 1.43 ≥10.5 ≥836 ≥11 ≥876 53 49 422 390 ≤60
35M 12.30 11.80 1.23 1.18 ≥10.9 ≥868 ≥14 ≥1114 36 34 287 271 ≤100
38M 12.60 12.30 1.26 1.23 ≥11.3 ≥899 ≥14 ≥1114 39 36 311 287 ≤100
40M 12.90 12.60 1.29 1.26 ≥11.6 ≥923 ≥14 ≥1114 41 38 327 302 ≤100
42M 13.30 12.90 1.33 1.29 ≥12.0 ≥955 ≥14 ≥1114 43 40 342 318 ≤100
45M 13.70 13.30 1.37 1.33 ≥12.5 ≥995 ≥14 ≥1114 46 43 366 342 ≤100
48M 14.10 13.70 1.41 1.37 ≥12.9 ≥1027 ≥14 ≥1114 49 45 390 358 ≤100
50M 14.50 14.00 1.45 1.40 ≥13.0 ≥1033 ≥14 ≥1114 51 47 406 374 ≤100
35H 12.30 11.80 1.23 1.18 ≥10.9 ≥868 ≥17 ≥1353 36 33 287 263 ≤120
38H 12.60 12.30 1.26 1.23 ≥11.3 ≥899 ≥17 ≥1353 39 36 311 287 ≤120
40H 12.90 12.60 1.29 1.26 ≥11.6 ≥923 ≥17 ≥1353 41 38 327 302 ≤120
42H 13.30 12.90 1.33 1.29 ≥12.0 ≥955 ≥17 ≥1353 43 40 342 318 ≤120
45H 13.70 13.30 1.37 1.33 ≥12.3 ≥979 ≥17 ≥1353 46 43 366 342 ≤120
48H 14.10 13.70 1.41 1.37 ≥12.5 ≥995 ≥17 ≥1353 49 46 390 366 ≤120
35SH 12.30 11.80 1.23 1.18 ≥11.0 ≥876 ≥20 ≥1592 36 33 287 263 ≤150
38SH 12.60 12.30 1.26 1.23 ≥11.4 ≥907 ≥20 ≥1592 39 36 311 287 ≤150
40SH 12.90 12.60 1.29 1.26 ≥11.6 ≥939 ≥20 ≥1592 41 38 326 302 ≤150
42SH 13.30 12.90 1.33 1.29 ≥12.4 ≥987 ≥20 ≥1592 43 40 342 318 ≤150
45SH 13.70 13.20 1.37 1.32 ≥12.6 ≥1003 ≥20 ≥1592 46 42 366 334 ≤150
33UH 11.80 11.40 1.18 1.14 ≥10.7 ≥852 ≥25 ≥1989 34 31 271 247 ≤180
35UH 12.30 11.80 1.23 1.18 ≥10.8 ≥860 ≥25 ≥1989 36 33 287 263 ≤180
38UH 12.60 12.30 1.26 1.23 ≥11.3 ≥899 ≥25 ≥1989 39 36 311 287 ≤180
40UH 12.90 12.50 1.29 1.25 ≥11.3 ≥899 ≥25 ≥1989 41 38 326 302 ≤180
33EH 11.80 11.40 1.18 1.14 ≥10.3 ≥820 ≥30 ≥2388 34 31 271 247 ≤200
35EH 12.30 11.70 1.23 1.17 ≥10.5 ≥836 ≥30 ≥2388 36 33 287 263 ≤200
38EH 12.60 12.20 1.26 1.22 ≥11.3 ≥899 ≥30 ≥2388 39 35 311 287 ≤200
