Low Speed High Torque BLDC Motor

The low-speed high-torque BLDC motor is a special BLDC motor with a unique electrical mechanical design and motor structure design. It has a wide range of applications and is an indispensable part of modern industry.

1. Features

The low-speed high-torque BLDC motor is a special BLDC motor. Its main features are that it can run at low speed and has a wide speed range, such as 10rpm ~ 4000rpm, and has high torque output at all speeds. This motor structure is different from that of traditional BLDC motors. It usually adopts a multi-pole structure and has certain special features in electrical mechanical design and control.

2. Motor design

(1) First, the electrical and mechanical design of the low-speed, high-torque BLDC motor needs to consider many factors, such as magnetic field design, coil layout, number of magnetic poles, etc.

In terms of magnetic field design, it is necessary to use permanent magnets with uniform magnetic field density, and to achieve low-speed, high-torque output by optimizing the magnetic field shape.

In terms of coil layout, it is necessary to consider the electromagnetic torque and electromagnetic induction power of the motor, and to improve the efficiency and performance of the motor by designing a reasonable coil structure.

In addition, the number of magnetic poles is also one of the important factors affecting the performance of the motor. By appropriately increasing the number of magnetic poles, the torque output of the motor can be increased.

(2) Secondly, the motor structure design of the low-speed, high-torque BLDC motor also has certain particularities.

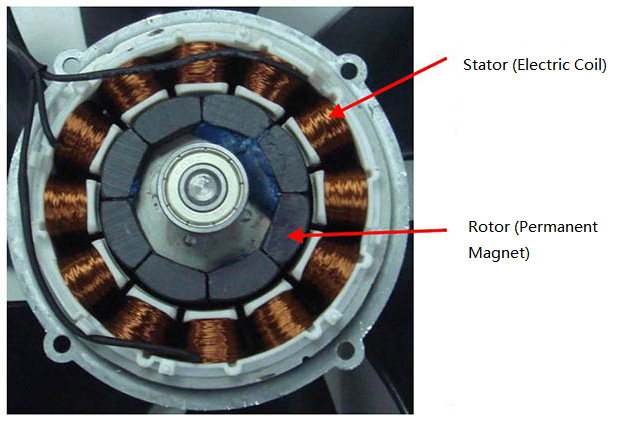

Factors such as the diameter and length of the rotor need to be considered to achieve low-speed, high-torque output. In the design of the motor stator, factors such as the material and structure of the core, as well as the material and conductor cross-section of the coil need to be considered to achieve high efficiency and high performance of the motor.

3.Advantages

(1) High efficiency. This motor can provide high efficiency and high torque output under low speed and high load conditions, which is very important for application environments that require precise and reliable control conditions.

(2) Precision control. Low-speed, high-torque brushless DC motors can achieve precise speed and torque control through electronic circuits. This control method is more precise and reliable than traditional mechanical control, and can achieve higher operating accuracy and control accuracy while ensuring high motor efficiency.

(3) Long life and reliability. And because the motor is electronically commutated and has a simple structure (it can replace the reduction gearbox mechanism), the maintenance and servicing costs of the motor are also reduced. Even when operating under high load and harsh environment, it will not accelerate aging.

(4) It also has the advantages of low energy consumption and low noise, making it widely used in modern industry.

4. Applications

The low speed high torque BLDC motor has many application advantages. Its low speed high torque output makes it very suitable for applications that require high torque output.

• Electric vehicles: Provide stable low-speed high-torque output, suitable for urban driving.
• Industrial automation: In equipment that requires high torque and low speed operation, such as conveyors or heavy robotic arms.
• Marine engineering: Such as underwater thrusters, requiring motors to work stably in harsh environments.

In short, the low-speed high-torque BLDC motor is a special BLDC motor with a unique electrical mechanical design and motor structure design. It has a wide range of applications and is an indispensable part of modern industry.
